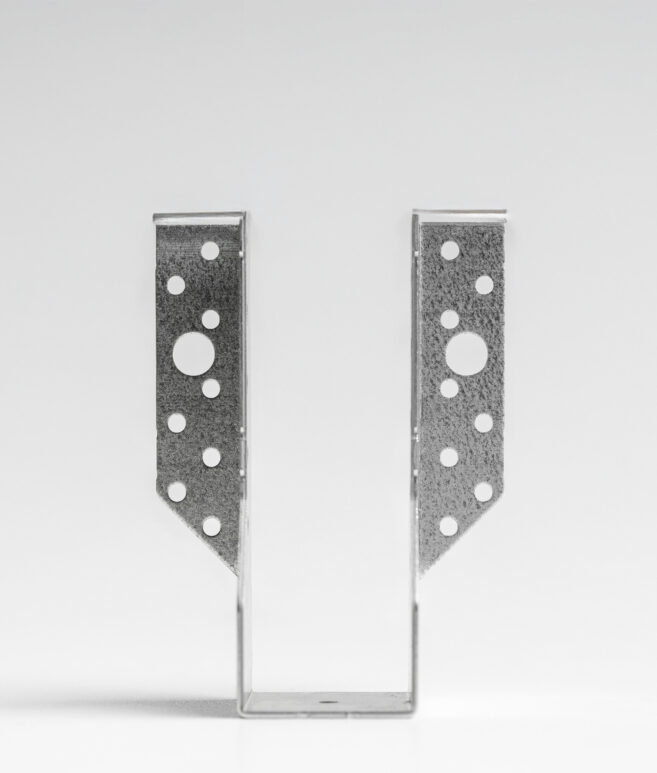

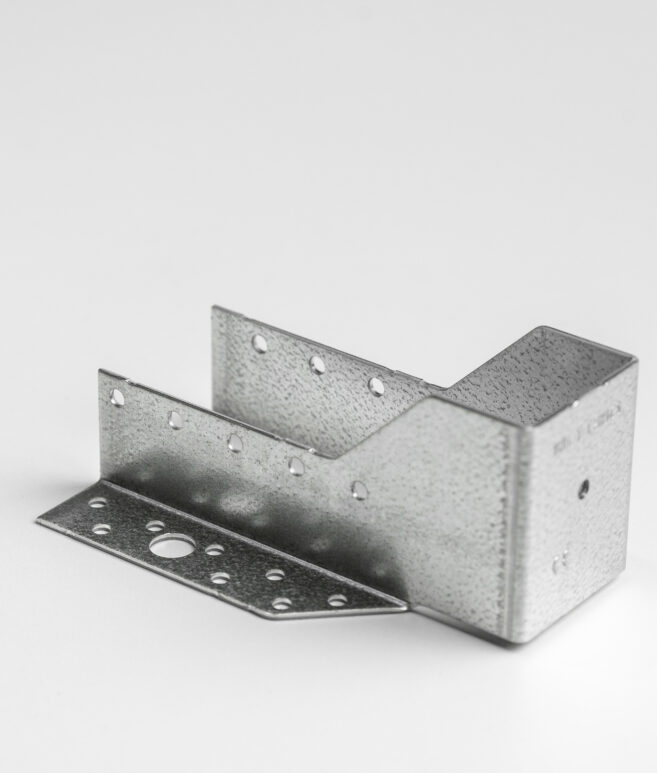

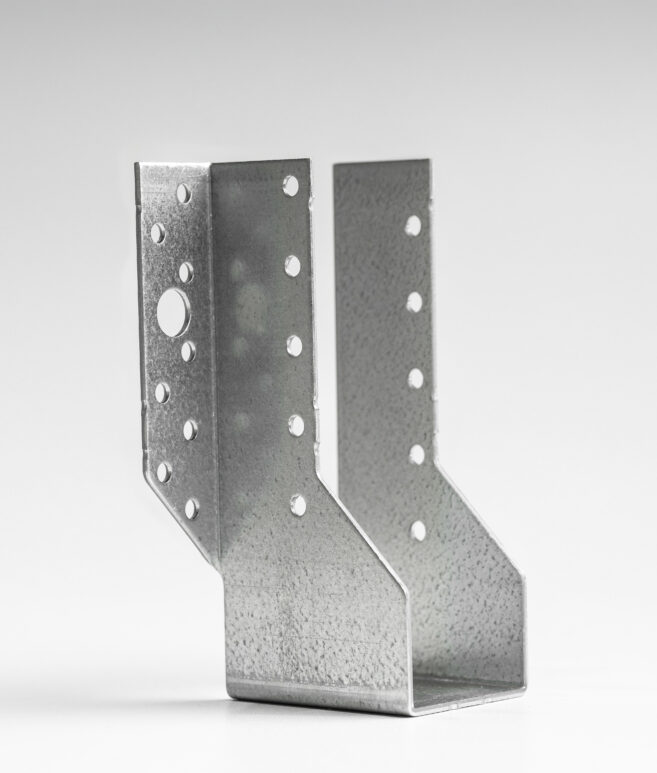

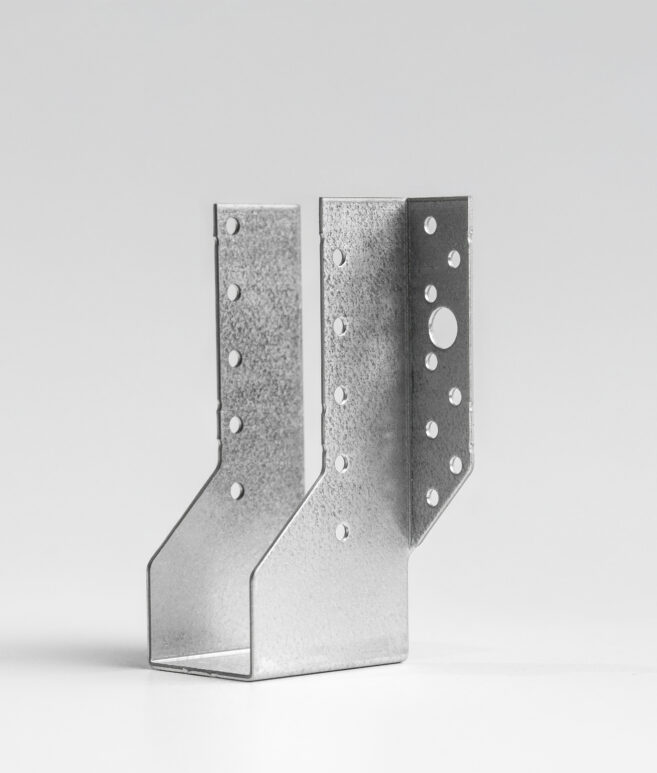

JOIST HANGERS (U-SHAPED SUPPORTS, BEAM HANGERS)
Joist hangers are designed for fastening wooden joists, beams, or rafters to walls, columns, or other beams. They provide a stable and reliable connection without the need for complex joinery and effectively transfer both vertical and horizontal loads to the supporting structure.
ADVANTAGES:

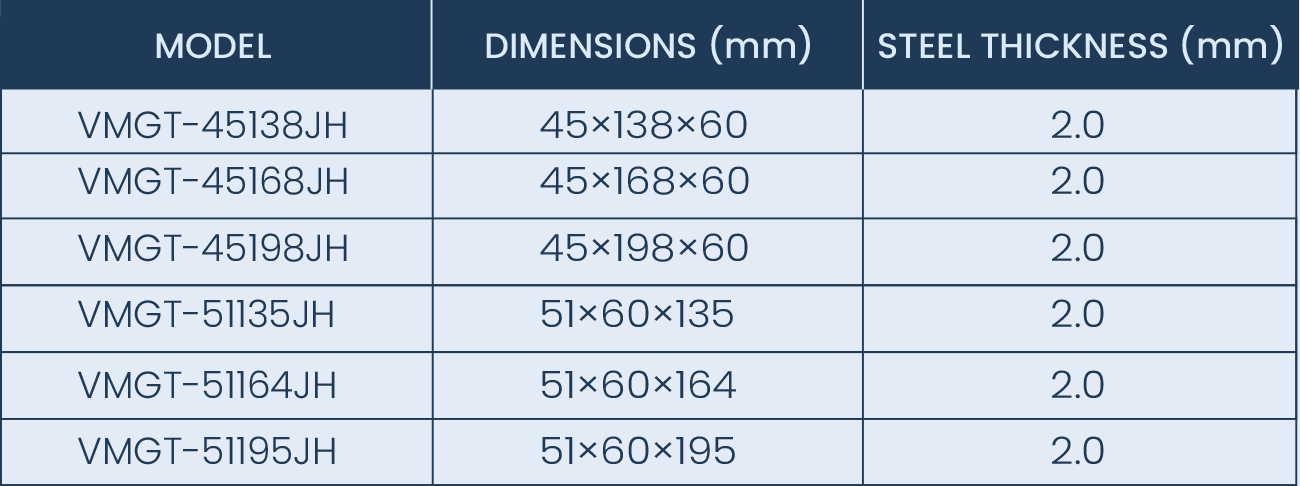

DIMENSIONS:

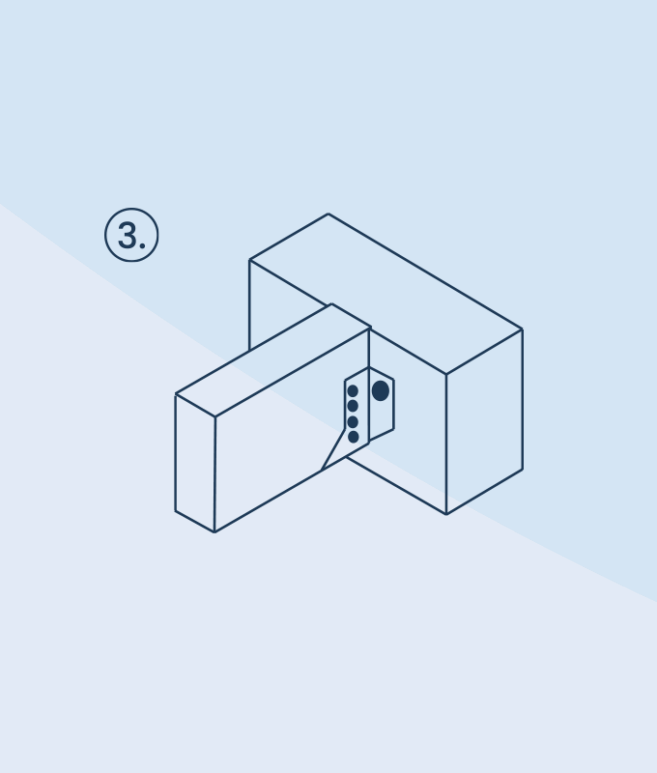

FIXING METHODS:
APPLICATIONS:
TECHNICAL SPECIFICATIONS:
-
• Galvanized Steel DX51D+Z275 (EN 10346:2015)
• Yield strength (Re) ≥ 250 N/mm²
• Tensile strength (Rm) ≥ 330 N/mm²
• Zinc coating ≥ 275 g/m²
• Elongation at break (A80): ≥ 19% -
• Hole position: ±1 mm (ISO 2768 C)
• Flange length: ±2.0 mm
• Other dimensions: ±1.0 mm
• Hole diameter: ±0.4 mm -
• Service Life: ≥ 50 years (ETA 25/0618)
• Fire Resistance: Class A1 (EN 13501-1)
• Service Classes: Suitable for Class 1 & 2 (EN 1995-1-1)
• Corrosion resistance: ensured by galvanized coating Z275 -
• Timber, Glulam, LVL, CLT, Plywood, Concrete, Steel

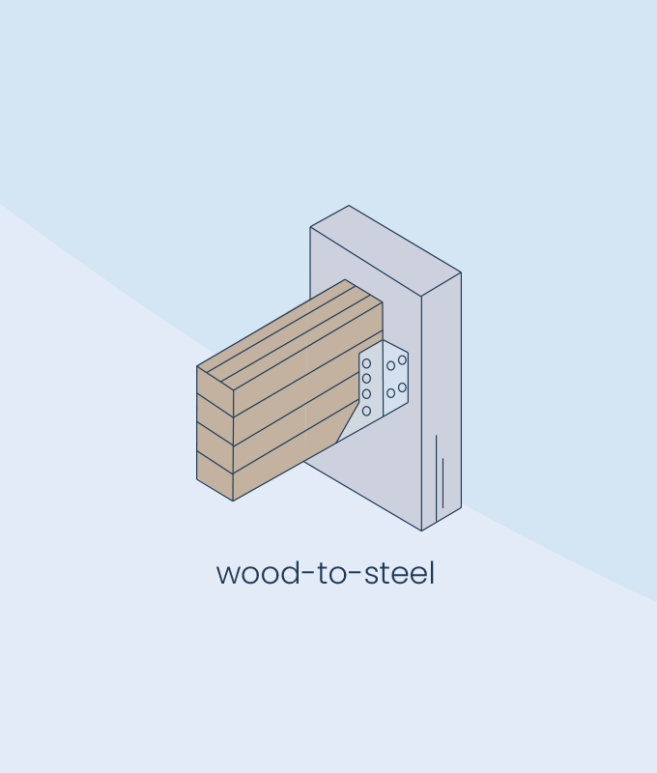

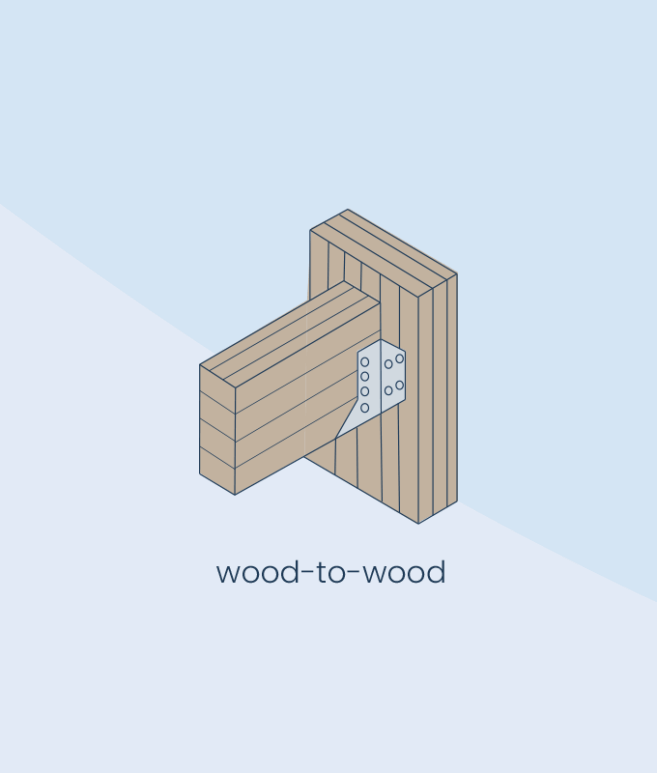

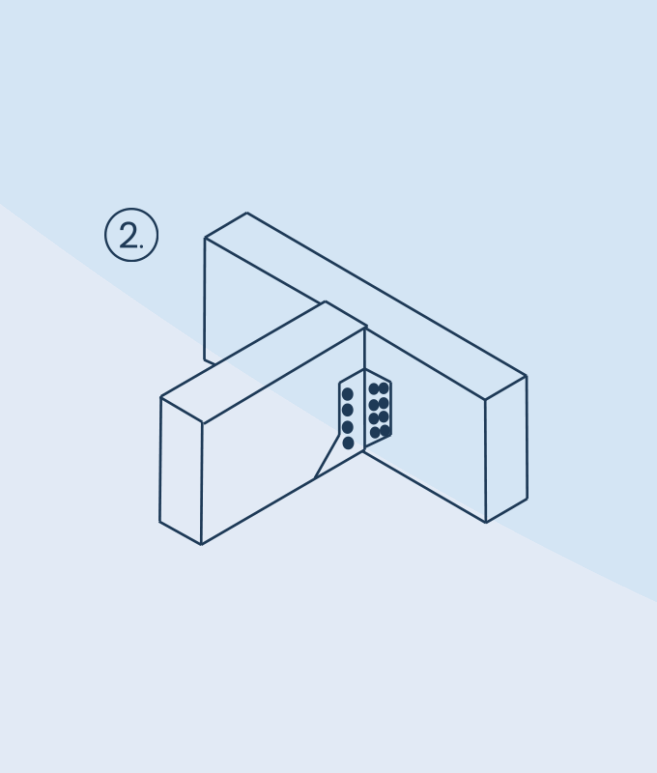

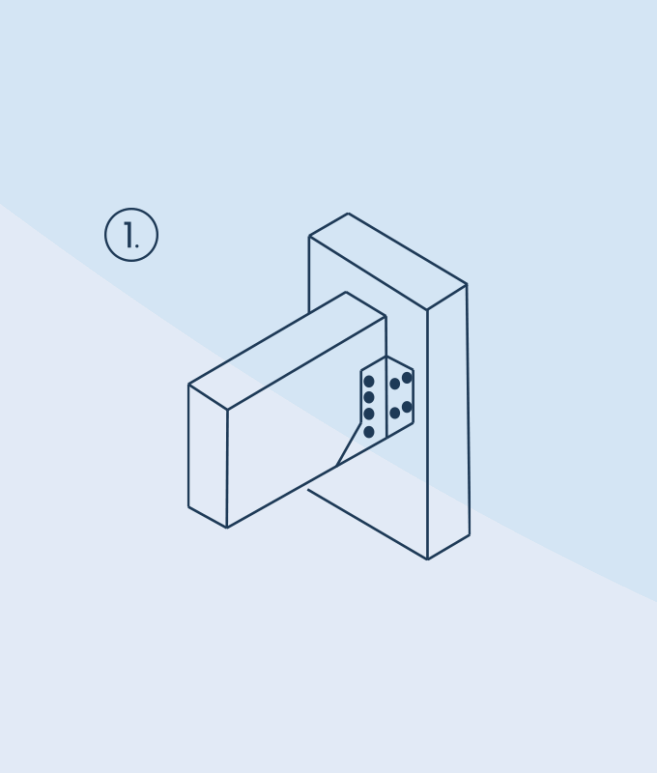

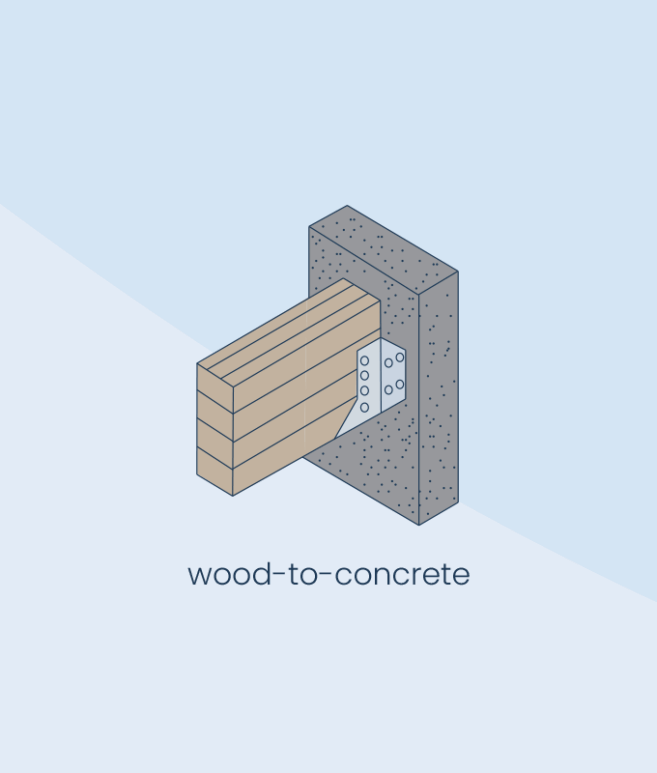

• Wood-to-Wood, Wood-to-Concrete, Wood-to-Steel connections -
• Nails: Ø4.0 mm, profiled length ≥ 24 mm
• Screws: Ø4.5–5.0 mm, thread length ≥ 6×Ø
• Anchors / Threaded Rods / Concrete Screws: Ø8–10 mm
• ETA certified per EAD 330232-00-0601 or EAD 330499-01-0601 -
• ETA number: ETA 25/0618
• Assessment body: Eurofins Expert Services Oy (Finland)
• Assessment document: EAD 130186-00-0603
• AVCP system: 2+ (constancy of performance assessment system)
• CE marking
